An ignition coil is a crucial component in the ignition system of both cars and motorcycles. Its primary function is to convert the 12 volts of electricity from the car battery into a much higher voltage (up to 45,000 volts), which is necessary to create a spark at the spark plug. This spark ignites the air-fuel mixture in the engine's cylinders, powering the vehicle. Without the ignition coil, the engine wouldn't be able to start, making it one of the most important parts of the engine's ignition system.

In this article, we'll break down the different types of ignition coils available, including Pencil Ignition Coils, Single-Point Coils, Multi-Outlet Ignition Coils, and Ignition Lead Sets. Each of these plays a specific role in ensuring optimal engine performance. We'll also address some frequently asked questions to help you better understand their importance.

Types of Our Ignition Coils

Pencil Ignition Coil

A Pencil Ignition Coil is designed to be compact and highly efficient. These coils are often used in modern vehicles that require a smaller and more efficient ignition system. The pencil shape allows them to fit directly on top of the spark plug, ensuring that the spark is generated right at the point where it is needed. Pencil coils are particularly effective in Engine Coil Packs because they offer a compact design while still providing the necessary high voltage to ignite the air-fuel mixture.

Single-Point Coil

A Single-Point Coil is a traditional ignition coil that operates using a single coil for each spark plug. Typically, these are used in older ignition systems, where each coil is connected to a single spark plug, ensuring a high-energy spark is generated for ignition. They are often found in older vehicles but have been largely replaced by more modern multi-coil systems for better performance and fuel efficiency.

Multi-Outlet Ignition Coil

A Multi-Outlet Ignition Coil provides ignition to more than one spark plug at a time. This coil type is commonly used in modern vehicles that employ a Coil-On-Plug (COP) system, where each cylinder has its own coil. The Multi-Outlet Ignition Coil ensures that the vehicle receives efficient and precise ignition, enhancing performance, fuel economy, and reducing emissions. The COP system, combined with multi-outlet coils, minimizes the energy loss and ensures that each spark plug receives the exact voltage it needs for ignition.

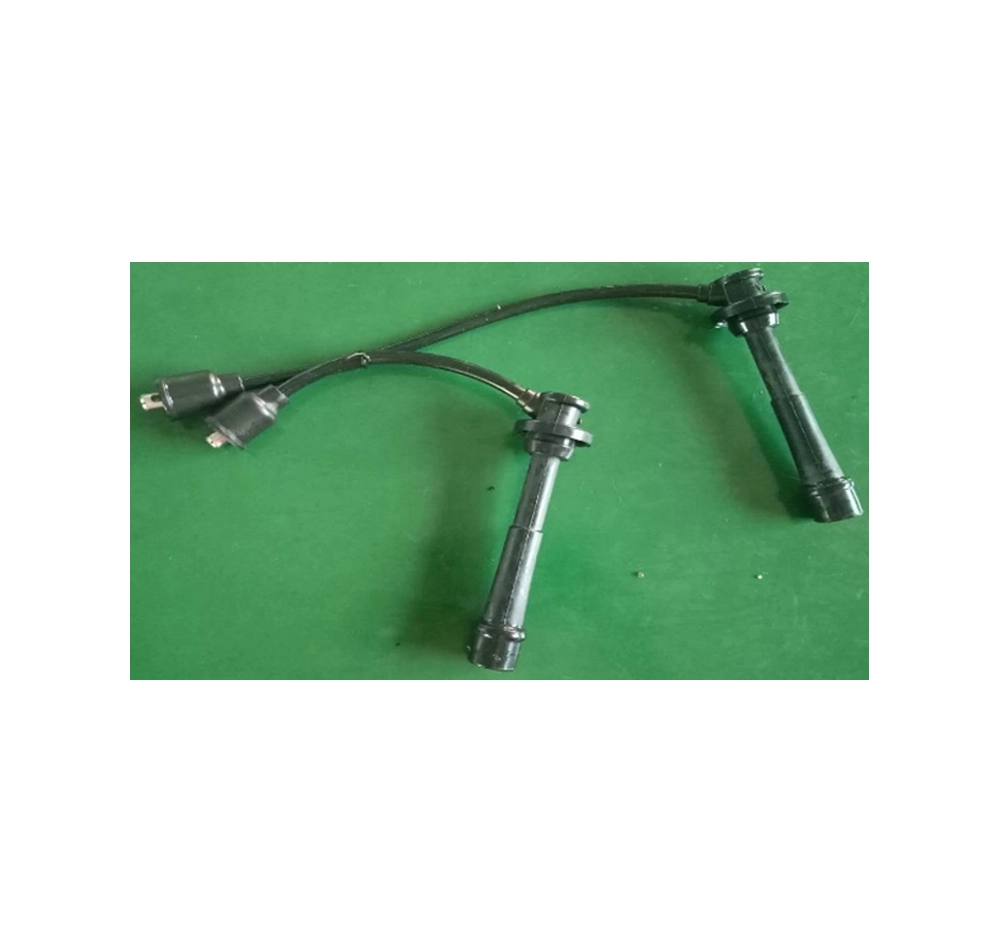

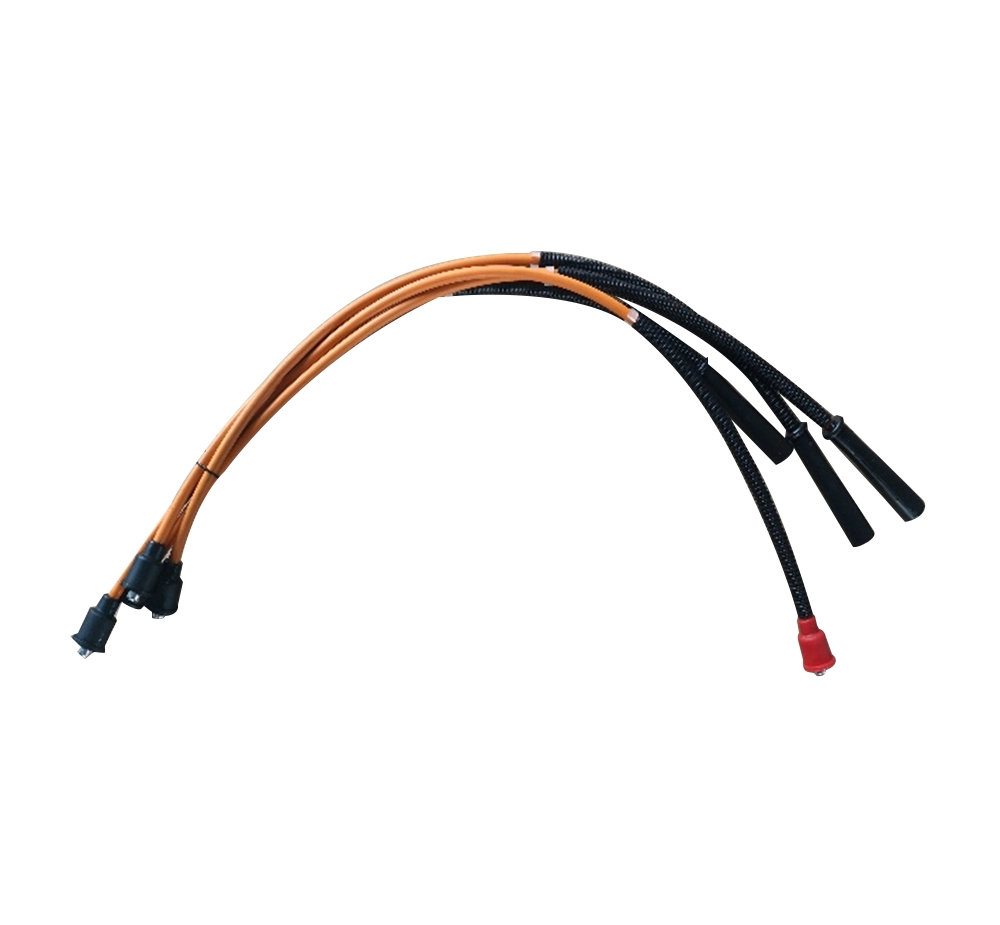

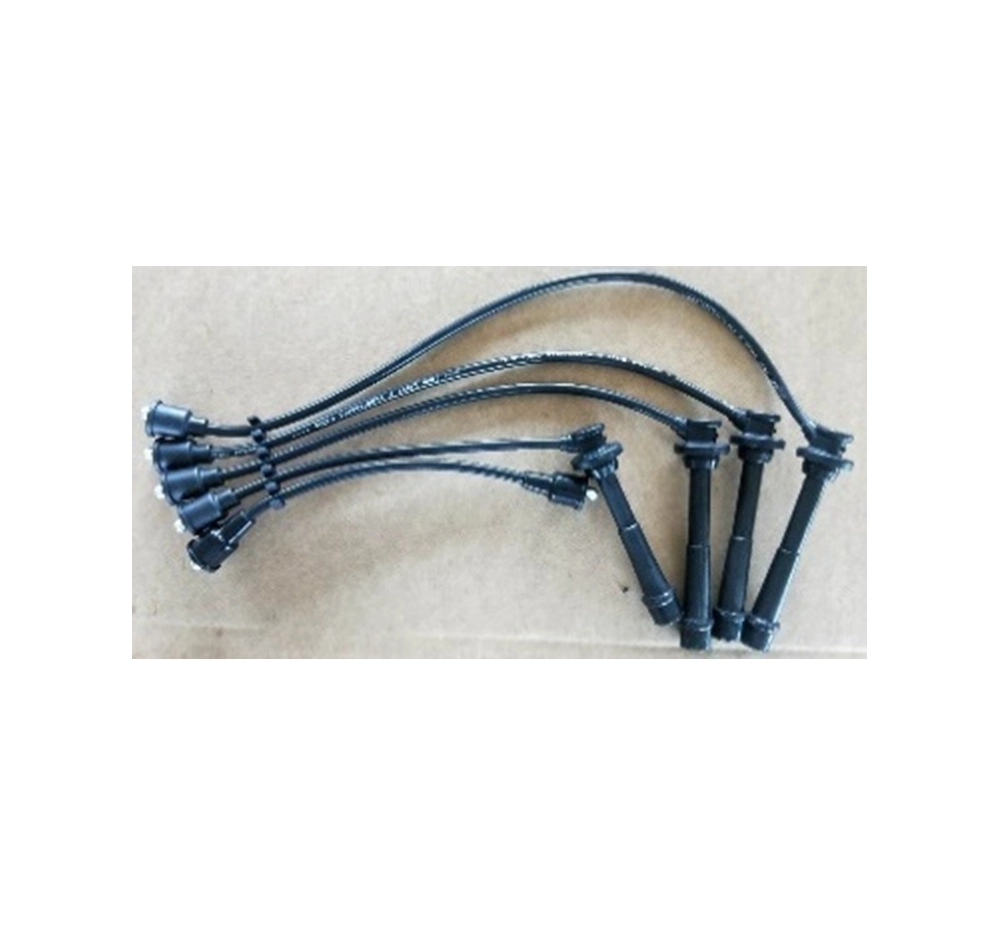

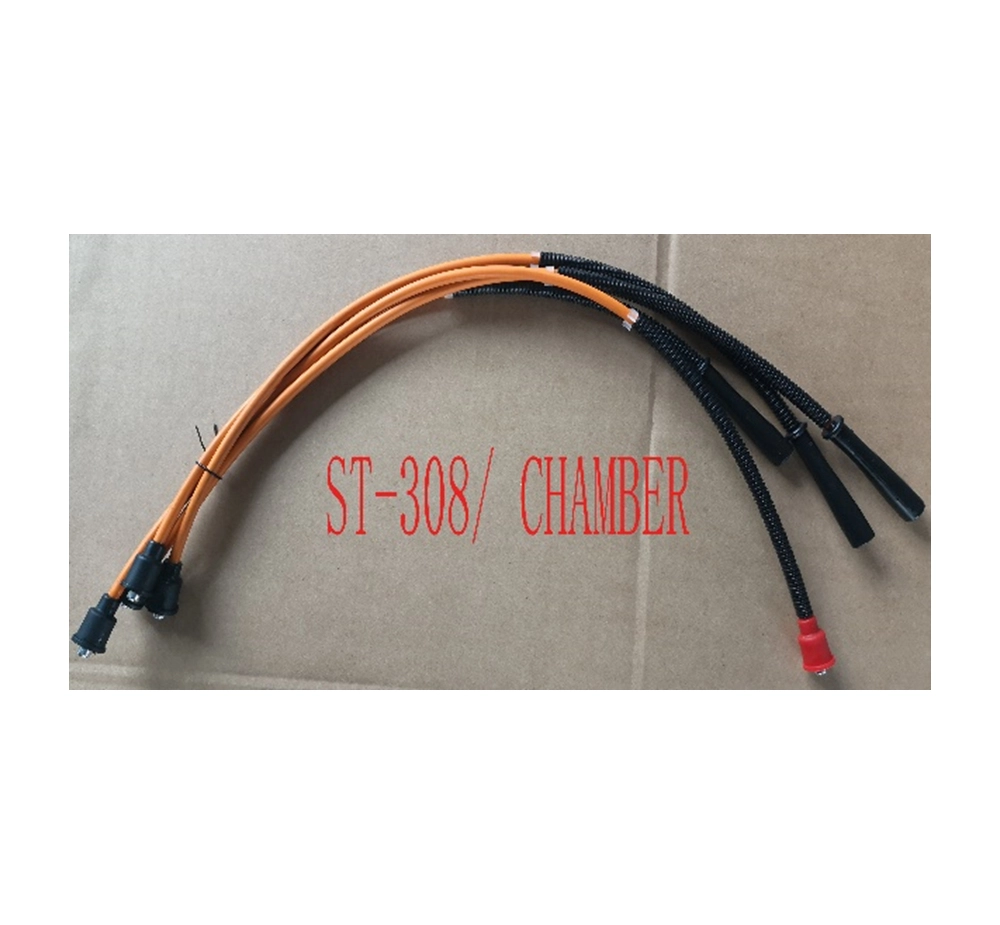

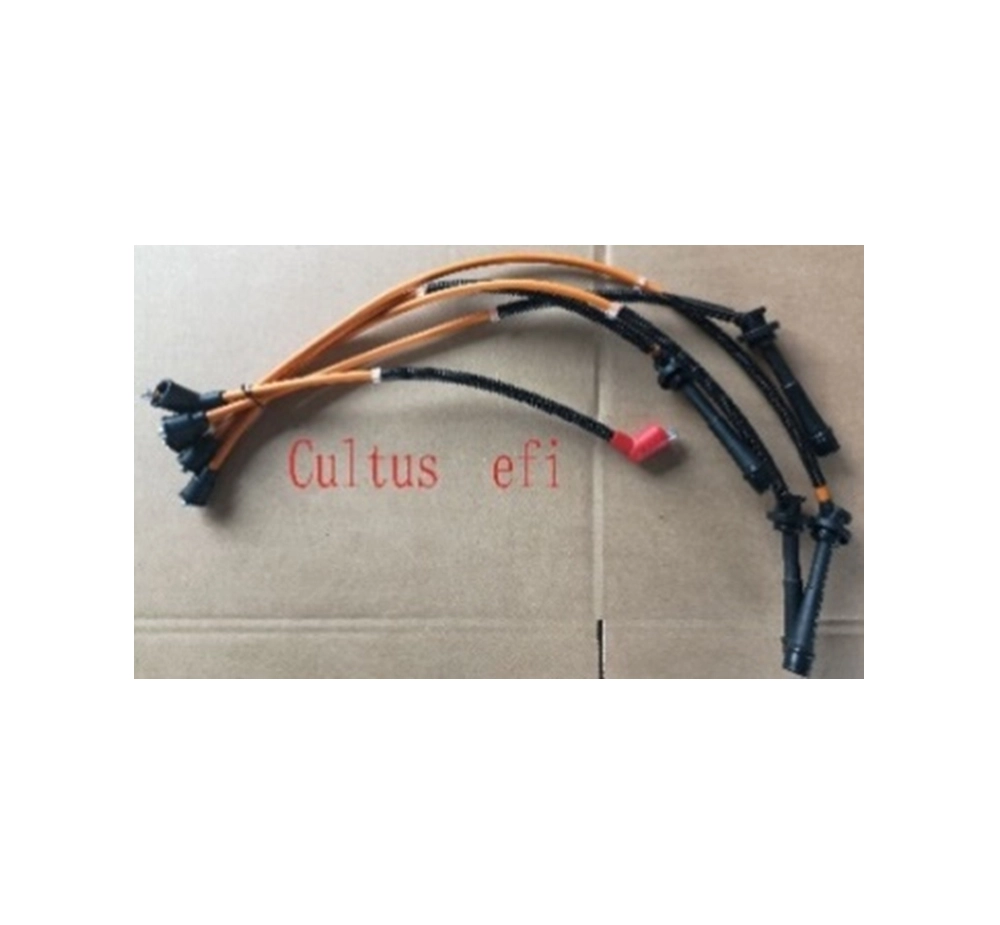

Ignition Lead Set

An Ignition Lead Set is a set of high-voltage cables that connect the ignition coil to the spark plugs. The leads carry the high-voltage electricity generated by the ignition coil to the spark plugs, where the spark ignites the engine's fuel-air mixture. High-quality ignition lead sets are critical for ensuring stable and reliable ignition performance. If these leads fail, the engine may misfire, leading to reduced performance and efficiency.

Spark Plug

An spark plug is a critical component of the ignition system that ignites the air-fuel mixture in the engine’s cylinders. It generates a spark when the high-voltage electricity from the ignition coil is delivered to it. The spark plug's role is to create a powerful spark at the right moment, which ignites the compressed air-fuel mixture, starting the combustion process. High-quality spark plugs are essential for ensuring smooth engine operation, optimal fuel efficiency, and preventing misfires. A worn-out or damaged spark plug can lead to poor engine performance and higher fuel consumption.

Common FAQ About Ignition Coils

Conclusion

Ignition coils, such as Pencil Ignition Coils, Single-Point Coils, and Multi-Outlet Ignition Coils, play a vital role in the functioning of a vehicle's ignition system. Whether you're replacing a single ignition coil or upgrading to an Engine Coil Pack for improved performance, understanding the different types and their functions will help you make the best choice for your vehicle. Make sure to check the quality and compatibility of your ignition components for long-term engine efficiency and reliability.
